Genuine CPU Cooling Fan for HP Envy 15 Series Laptop

Getting your HP COMPAQ parts today is free of shipping. We supply brand new HP COMPAQ Laptop Fan with low price. We guarantee the product with a full warranty during warranty period if the product has any quality problem!
Genuine CPU Cooling Fan for HP Envy 15 Series Laptop
Click for more pictures
$18.99
Free Shipping
Brand New,6 Months Warranty
Authentication
Product Information:
Specification: 100% TESTED 100% WORK AND PASS THE NOISE TEST
Power: DC 5V, Bare Fan
Unit: PCS
Type: Laptop CPU Fan
Condition: Brand New
Availability: In Stock
Warranty: 6 Months
Payment:  PayPal | Credit Card
Default Shipping:  With Tracking Number, Free
Express Shipping: UPS|EMS
Quantity:

Add to Cart
Ask a question about this product...

Reviews
AB5505HX-OBB 576837-001

Envy 15 Series Envy 15-1000 Series Envy 15-1100 Series
Envy 15-1200 Series Envy 15-1300 Series

How to Replace HP Envy 15 CPU & GPU Cooling Fan

Before removing the fan/heat sink assembly, you need to remove the keyboard. If you are not sure how to remove these parts, you can refer to the post How to Remove the keyboard from HP Envy 15.

In HP Envy 15, there are two fans, one is for CPU and the other one is for GPU.

Remove the HP Envy 15 CPU fan/heat sink assembly:

1. Disconnect the fan cable 1 from the system board.
2. Following the 1, 2, 3, 4 sequence stamped into the processor fan/heat sink assembly, loosen the four Phillips PM2.0×6.0 captive screws 2 that secure the processor fan/heat sink assembly to the system board.
3. Remove the Phillips PM2.0×3.0 screw 3 that secures the processor fan/heat sink assembly to the system board.
4. Remove the processor fan/heat sink assembly
5. Due to the adhesive quality of the thermal material located between the processor fan/heat sink assembly and system board components, it may be necessary to move the processor fan/heat sink assembly from side to side to detach it.

Remove the HP Envy 15 GPU fan/heat sink assembly:

1. Disconnect the fan cable 1 from the system board.
2. Following the 1, 2, 3 sequence stamped into the video fan/heat sink assembly, loosen the three Phillips PM2.0×6.0 captive screws 2 that secure the video fan/heat sink assembly to the system board.
3. Remove the two Phillips PM2.0×3.0 screws 3 that secure the video fan/heat sink assembly to the system board.
4. Remove the video fan/heat sink assembly
5. Due to the adhesive quality of the thermal material located between the video fan/heat sink assembly and system board components, it may be necessary to move the video fan/heat sink assembly from side to side to detach it.

Reverse the procedure to install the HP Envy 15 fan.
Customers who bought this product also purchased

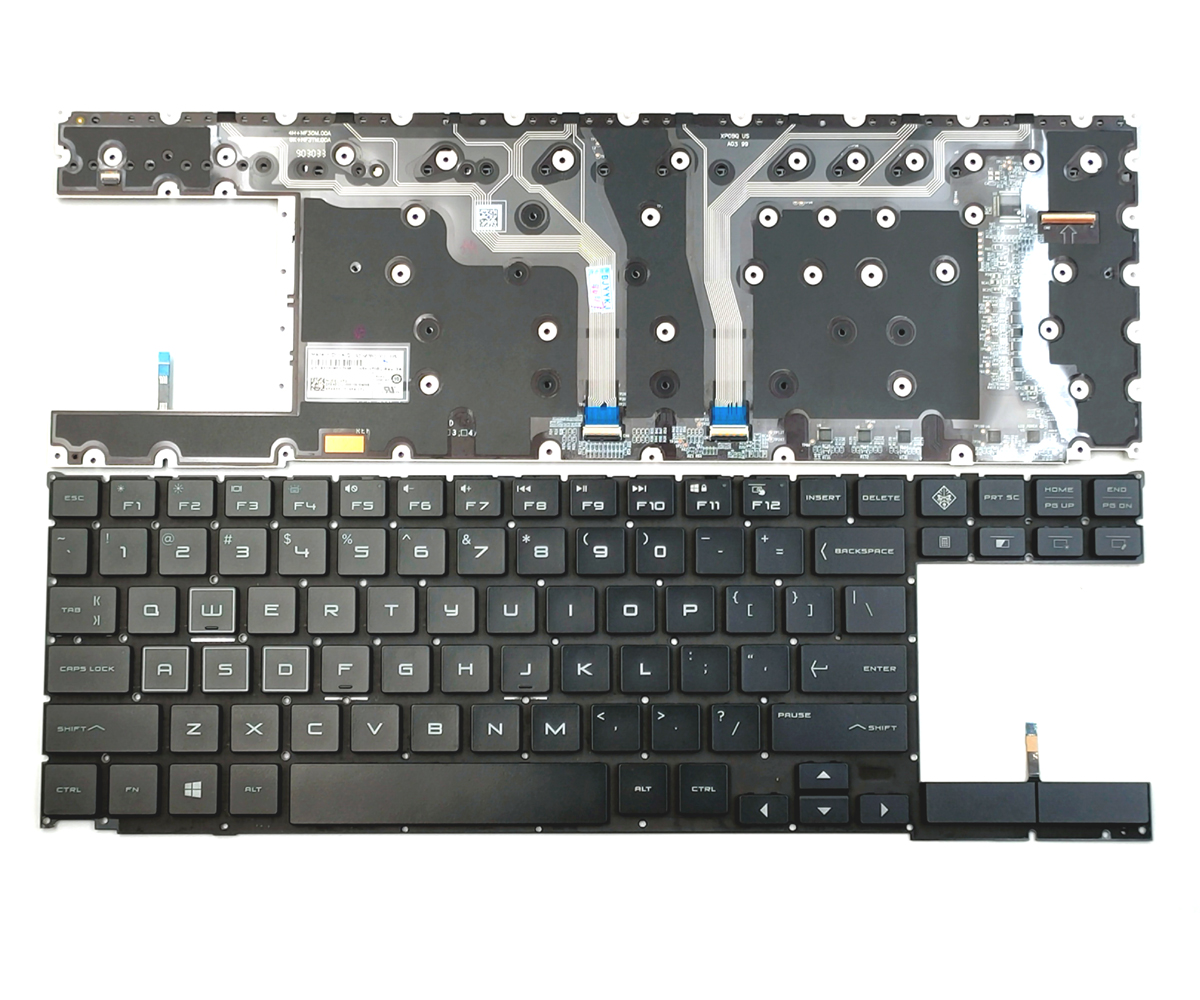

Genuine Backlit Keyboard for HP Omen X 2S 15-DG Series Laptop
